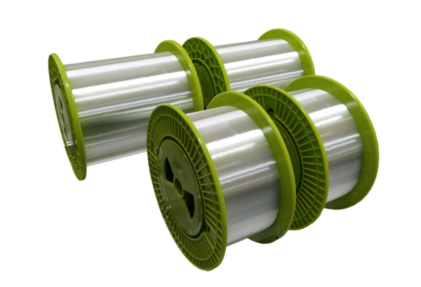

Based on the optimum coated layer design, TFO MiniTM LightBend optical fibre keeps the cladding diameter unchanged but with coated diameter dramatical reduction. This product still retains the same and outstanding properties as ITU-T G.657.A1 and IEC 60793-2-50 type B6.a1 fibre with traditional coated diameter 245μm. And with zero water peak, low attenuation and excellent uniformity, low chromatic dispersion and PMD, excellent macrobending loss at minimum radius 10mm, superior and stable geometrical size control level, this full spectrum fibre is applicable to transmission system operating over the entire wavelength from 1260nm to 1625nm.
TFO MiniTM LightBend optical fibre supports higher density and smaller diameter cables which can improve duct utilization and save resource, widely used in the applications of FTTH, high count fibre cable, microcables. etc.
|
TFO MiniTM (G.657.A1 200µm) |
|||
|
Characteristics |
Conditions |
Parameters |
Unit |
|
Optical properties |
|||
|
Attenuation Coefficient |
1310 nm |
≤ 0.34 |
dB/km |
|
1285-1330 nm |
≤ 0.37 |
dB/km |
|
|
1383 nm（after hydrogen aging） |
≤ 0.31 |
dB/km |
|
|
1490 nm |
≤ 0.23 |
dB/km |
|
|
1550 nm |
≤ 0.20 |
dB/km |
|
|
1525 - 1575 nm |
≤ 0.21 |
dB/km |
|
|
1625 nm |
≤ 0.22 |
dB/km |
|
|
Mode Field Diameter(MFD) |
1310 nm |
9.0 ± 0.3 |
µm |
|
1550 nm |
10.2 ± 0.4 |
µm |
|
|
Cut-Off Wavelength |
|
|
|
|
Cable Cut-Off |
|
≤ 1260 |
nm |
|
Chromatic Dispersion |
|
|
|
|
Zero Dispersion Wavelength |
|
1300 - 1324 |
nm |
|
Zero Dispersion Slope |
|
≤ 0.090 |
ps/nm2/km |
|
Dispersion Coefficient |
1285 - 1339 nm |
≤ |3| |
ps/nm/km |
|
1550 nm |
≤ 17 |
ps/nm/km |
|
|
1625 nm |
≤ 21 |
ps/nm/km |
|
|
Polarisation Mode Dispersion |
|
|
|
|
PMD Coefficient |
Uncabled fibre |
≤ 0.10 |
ps/√km |
|
PMD link design value |
≤ 0.06 |
ps/√km |
|
|
Point Discontinuity |
1310 nm |
≤ 0.05 |
dB |
|
1550 nm |
≤ 0.05 |
dB |
|
|
Effective Group Refractive Index |
1310 nm |
1.4671 |
|
|
1550 nm |
1.4675 |
|
|
|
1625 nm |
1.4680 |
|
|
|
Geometrical Properties |
|||
|
Core Non-circularity |
|
≤ 6 |
% |
|
Cladding Diameter |
|
125.0 ± 0.5 |
µm |
|
Core/Cladding Concentricity Error |
|
≤ 0.4 |
µm |
|
Cladding Non-Circularity |
|
≤ 0.6 |
% |
|
Coating Diameter |
|
190 ± 5 |
µm |
|
Coating/Cladding Concentricity Error |
|
≤ 8 |
µm |
|
Mechanical properties |
|||
|
Proof Test |
Fibre strain |
≥ 1 |
% |
|
Fibre load |
≥ 9 |
N |
|
|
Stress |
≥ 100 |
kpsi |
|
|
Dynamic Stress Corrosion Susceptibility Factor nd |
Unaged |
≥ 20 |
|
|
Aged（30 days @ 85℃, 85% R.H.） |
≥ 20 |
|
|
|
Macro Bending Sensitivity |
10 turns of 15 mm radius, 1550nm |
≤ 0.25 |
dB |
|
10 turns of 15 mm radius, 1625 nm |
≤ 1.0 |
dB |
|
|
1 turns of 10 mm radius, 1550 nm |
≤ 0.75 |
dB |
|
|
1 turns of 10 mm radius, 1625 nm |
≤ 1.5 |
dB |
|
|
Coating Strip Force |
Peak value |
1.3 - 8.9 |
N |
|
Fibre Curl |
|
≥ 4 |
m |
|
Environmental Properties |
|||
|
Accelerated Ageing（30days @ 85℃ 85% R.H.） |
Induced attenuation（1310 and 1550 nm） |
≤ 0.05 |
dB/km |
|
Dry heat aging（30days @ 85℃） |
Induced attenuation（1310 and 1550 nm） |
≤ 0.05 |
dB/km |
|
Temperature Cycling （-60℃- +85℃） |
Induced attenuation（1310 and 1550 nm） |
≤ 0.05 |
dB/km |
|
Water Soak（30 days @ 23℃） |
Induced attenuation（1310 and 1550 nm） |
≤ 0.05 |
dB/km |
