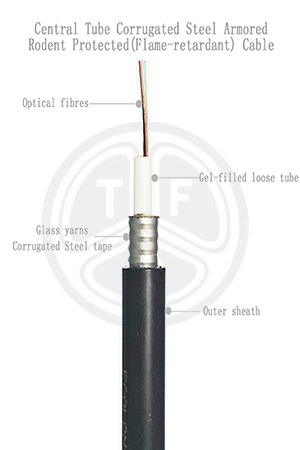

Central Tube Corrugated Steel Armored Rodent Protected (Flame-retardant) Cable（CTC CS）

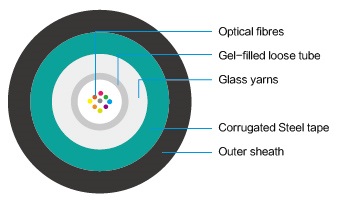

The fibres are positioned in a loose tube made of PBT. The tube is filled with a water-resistant filling

compound and covered with a layer of glass yarn as strength member, and then amroured with a

layer of corrugated Steel tape longitudinally.The cable is completed with a PE(LSZH) outer sheath.

Characteristics：

1.Excellent mechanical and temperature performance

2.Accurate excess fiber length control to get stable cable performance

3.Special tube filling compound ensure a critical protection of fibre and resist the water

4.Glass yarn strength member ensure tensile strength Anti-water and rodent protected

5.Corrugated steel tape can prevent moisture, rodent and better crush resistance

6.Outer sheath protects cable from ultraviolet radiation

Installation：Duct, Non self-supporting aerial, Direct buried

Applications：Long distance, LAN communication and FTTx

Standards：IEC 60794-3-10

Temperature Range：Transportation：-30~+70℃；Installation：-5~+50℃；In use：-30~+70℃
